Single Core Copper PVC Electrical Wire (H07V-K)

Product Review | Top Rated

H07V-K single-core copper cable The H07V-K is a high-quality, standard-duty, single-core electrical cable designed for fixed installations in dry, damp, or moderately wet indoor environments. Featuring a plain annealed copper conductor and PVC insulation, it is one of the most widely used and truste

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

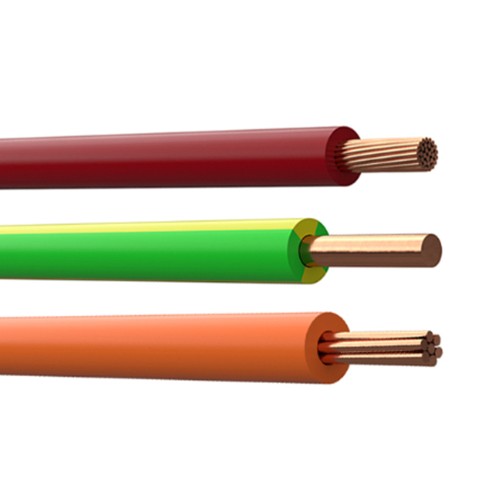

H07V-K single-core copper cable

The H07V-K is a high-quality, standard-duty, single-core electrical cable designed for fixed installations in dry, damp, or moderately wet indoor environments. Featuring a plain annealed copper conductor and PVC insulation, it is one of the most widely used and trusted cables for a vast range of electrical applications in commercial, industrial, and residential settings. Its excellent balance of flexibility, durability, and safety compliance makes it a fundamental component for electrical systems.

Key Features & Benefits

Premium Copper Conductor: Plain annealed copper ensures excellent electrical conductivity, low resistance, and reliable long-term performance.

PVC Insulation: Tough Polyvinyl Chloride (PVC) insulation provides robust protection against abrasion, moisture, and common environmental stresses within its rating.

High Flexibility (Class 5 Conductor): The finely stranded copper wires (K designation) offer superior flexibility compared to rigid solid-core cables, making termination and routing in enclosures and conduit significantly easier.

Flame Retardant: The insulation material is self-extinguishing, contributing to improved fire safety in installations.

Compliance & Safety: Manufactured in accordance with harmonized European standards (HD 21.3 S1 / IEC 60227), ensuring consistent quality and safety across the EU and other adopting markets.

Technical Data & Specifications

Parameter	Specification/Technical data
Product standard	Harmonized to HD 21.3 S1 / IEC 60227. Compliant with the Low Voltage Directive.
Voltage Rating	450/750 Volts (U0/U). Suitable for up to 450V to earth and 750V between conductors.
Conductor Material	Plain annealed, fine-stranded copper (Class 5 flexibility).
Insulation Material	Polyvinyl Chloride (PVC), type TI1.

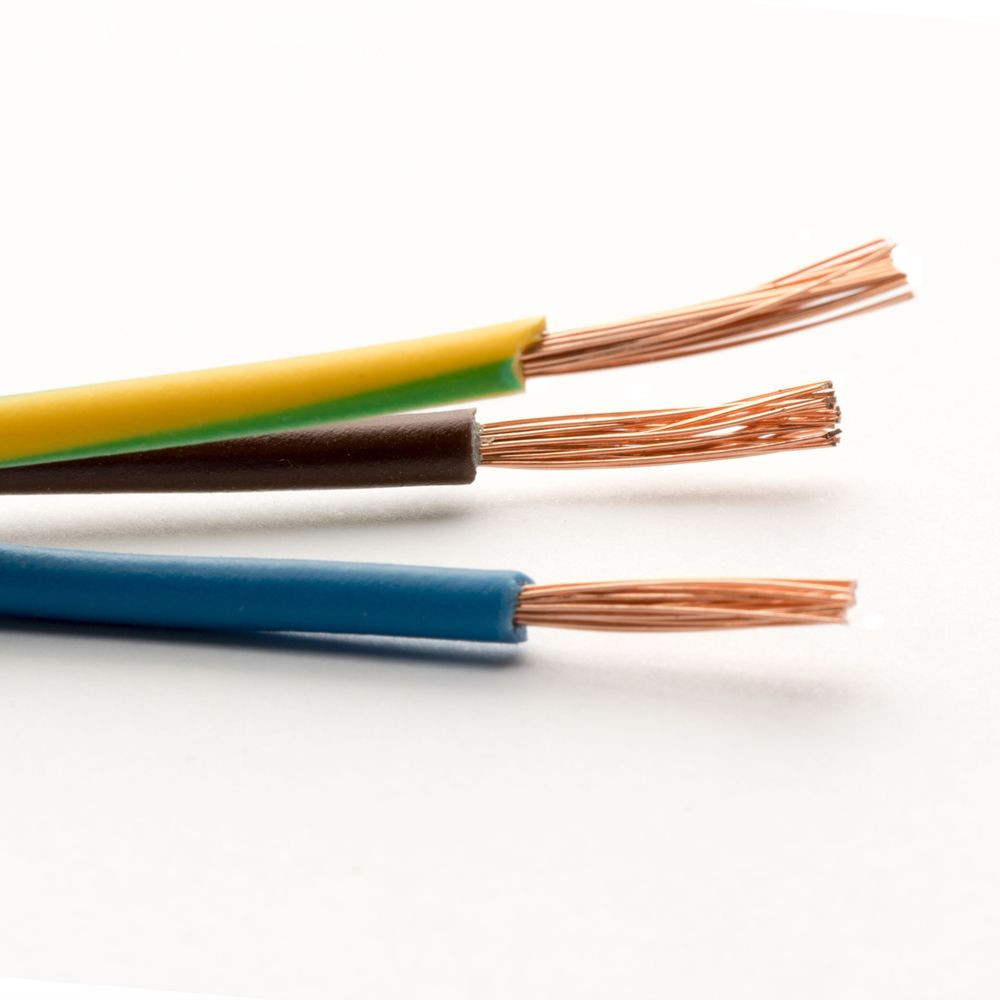

Color	Standard: Brown (Phase), Blue (Neutral), Green/Yellow (Earth). Other colours (Black, Grey, etc.) are commonly available.
Temperature range	Fixed installation: -30°C to +70°C. Maximum conductor temperature in operation: +70°C. Maximum short-circuit temperature (5s): +160°C.
Bending radius	Recommended minimum: 6 x overall cable diameter (for fixed installation).
Packaging	Typically supplied in 100-meter coils or drums.
Available Cross-Sectional Areas (mm²):	Commonly available from 1.0 mm² up to 16 mm² (and often up to 35 mm² or more for specific needs). Standard range includes: 1.0, 1.5, 2.5, 4.0, 6.0, 10.0, 16.0 mm².

Primary Applications

The H07V-K is intended for fixed wiring installations where significant mechanical stress is not expected. It must be installed within appropriate cable management systems for full protection.

Electrical Switchboards & Control Cabinets: As internal wiring for connections to circuit breakers, contactors, and terminals.

Power & Lighting Circuits: Installation within conduit, trunking, or cable ducting in walls, ceilings, and under floors.

Industrial Machinery: For fixed internal wiring of machines and control panels (when not subject to movement).

Junction Boxes & Connection Points: Reliable wiring for distribution points.

Commercial & Residential Buildings: A standard cable for socket outlets, lighting fixtures, and fixed appliances.

Important Installation Notes

Not for direct burial or outdoor exposure. The H07V-K is not UV-resistant and is not designed for direct contact with soil or prolonged outdoor weather conditions.

Not for flexible use. It is not suitable for applications with continuous movement (e.g., on cable carriers, trailing leads). For flexible applications, consider H05V-K or H07RN-F cables.

Must be installed in protective conduits, trunking, or ducts as per IEC 60364 and national wiring regulations (e.g., BS 7671 in the UK).

Always consult local electrical codes and regulations before installation. Sizing must be performed by a qualified electrician based on load current and installation conditions.
