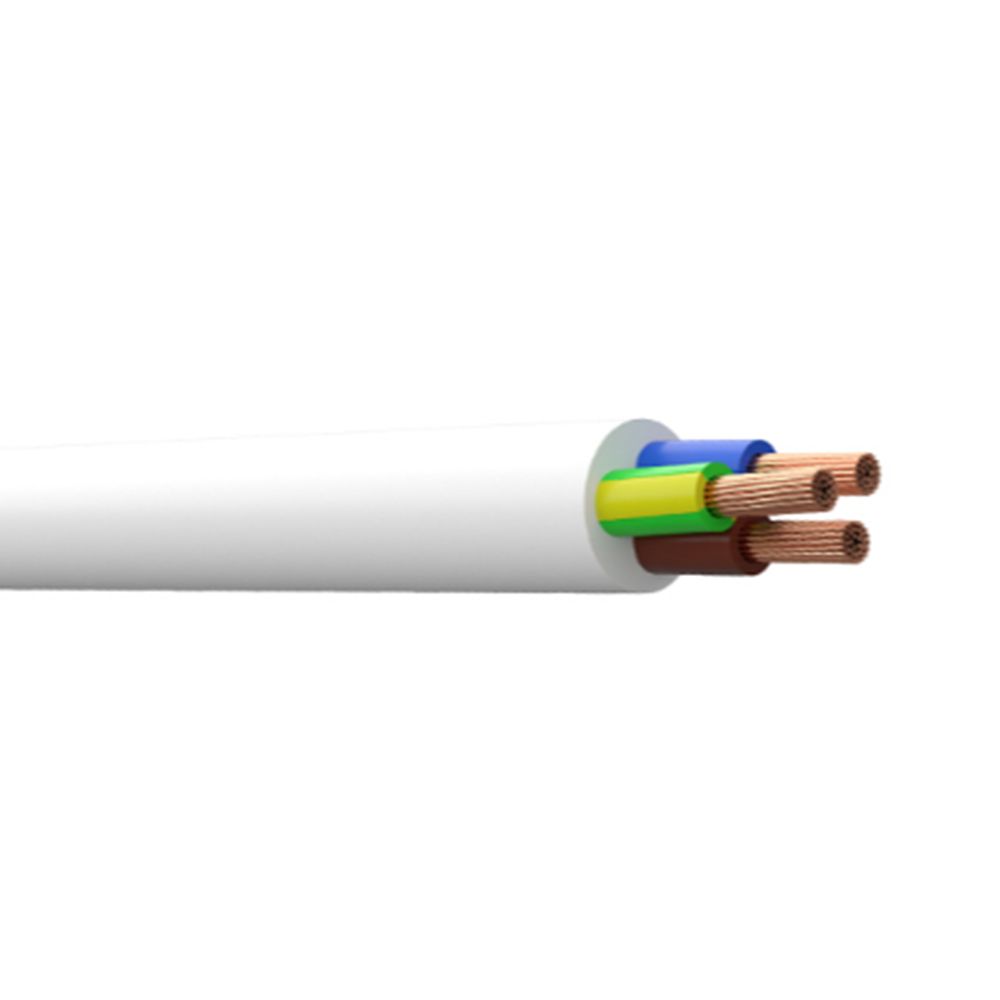

H03VV-F

H03VV-F is a light-duty, thermoplastic-sheathed, flexible cord designed for low-voltage applications in dry or damp environments. Recognized by the Harmonized Standard (HAR) , this cable is a popular choice for powering small household appliances and electronic devices where moderate mechanical stress is expected.

Standards

DIV VDE 0281-5, BS6500, HD21.5, IEC60227-5, NFC32-201-5, EN50525-2-11

Construction

Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228

Insulation: heat resistant PVC type TI2

Sheath：heat resistant PVC type TM2

Color of insulation:

2-core: blue, brown

3-core: green-yello3w, blue, brown

4-core: green-yellow, brown, black, grey

5-core: green-yellow, blue, brown, black, grey

Color of sheath：

white, black, grey or as customer required

Characteristics

Rated voltages U0/U: 300/300V.

Note:

U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.

U: Rated power-frequency voltage between phase conductors for which the cable is suitable.

Maximum conductor operating temperature: +70℃

Maximum short circuit conductor temperature: +160℃

Test voltage: 2000V

Application

Due to its light-duty construction, H03VV-F is intended for applications that do not require heavy mechanical protection. Common uses include:

Power supply cords for portable household appliances (e.g., vacuum cleaners, kettles, coffee machines).

Connection leads for audio/video equipment and computers.

Internal wiring for luminaires (lighting fixtures) and control panels where space is limited.

Extension cords for low-power devices in dry indoor environments.
