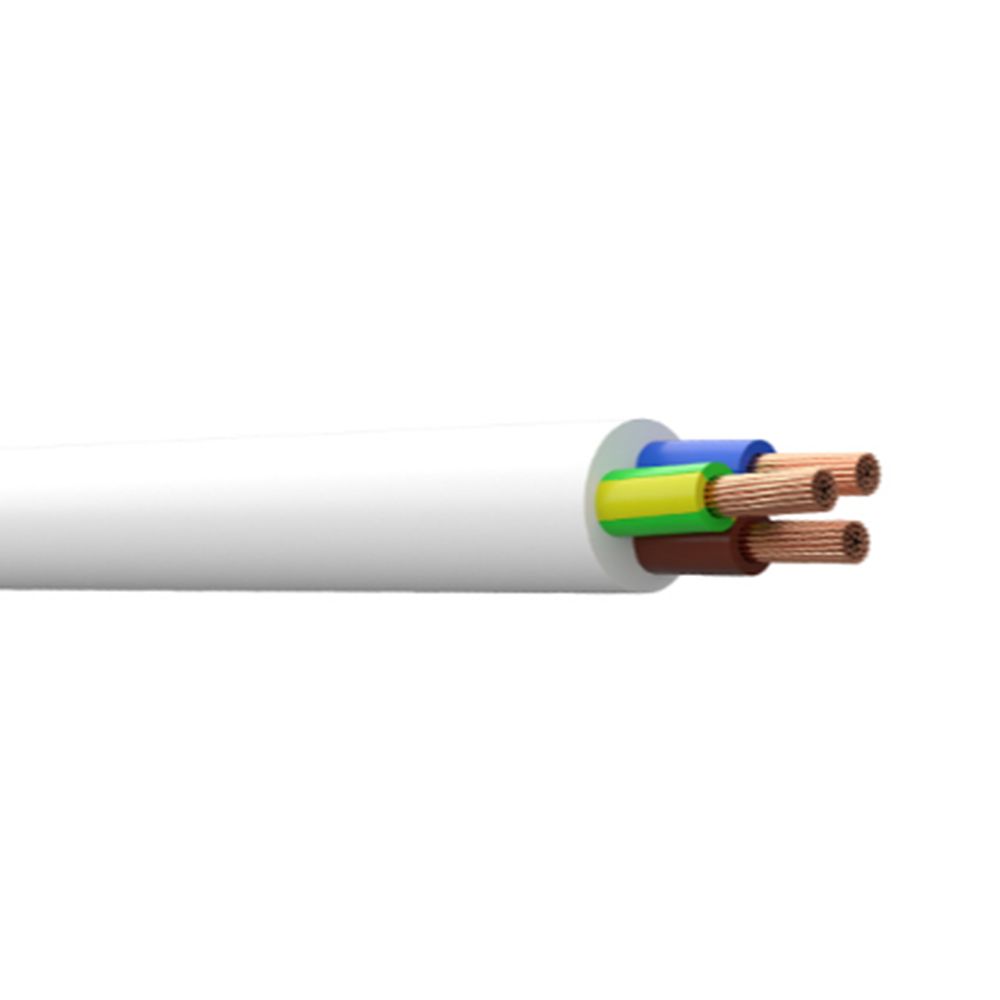

H05VV-F

H05VV-F wire is a European harmonized, flexible electrical cable widely used for light to medium-duty applications. Commonly referred to as harmonised cable or PVC flexible cord, it is designed for internal use in dry or damp environments. The cable is renowned for its flexibility, durability, and compliance with strict European safety standards, making it a staple in both household appliances and industrial settings.

Standards

DIV VDE 0281-5, BS6500, BS7919, HD21.5, NFC32-201-5, EN50525-2-11

Construction

Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228

Insulation: heat resistant PVC type TI2

Sheath：heat resistant PVC type TM2

Color of insulation:

2-core: blue, brown

3-core: green-yellow, blue, brown

4-core: green-yellow, brown, black, grey

5-core: green-yellow, blue, brown, black, grey

Color of sheath：

white, black, grey or as customer required

Characteristics

Rated voltages U0/U: 300/500V.

Note:

U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.

U: Rated power-frequency voltage between phase conductors for which the cable is suitable.

Maximum conductor operating temperature: +70℃

Maximum short circuit conductor temperature: +160℃

Test voltage: 2000V

Application

Thanks to its robust build and flexibility, H05VV-F applications are vast. It is the standard choice for connecting household appliances such as washing machines, refrigerators, and vacuum cleaners . It is also used in office equipment, control panels, and for the internal wiring of appliances where medium mechanical stress is expected . While suitable for indoor use in moist rooms, it is generally not recommended for outdoor installation without additional protection .
