0.6/1kV Aluminum Conductor XLPE Insulated steel wire armoured Cable
3880.6/1kV Aluminum Conductor XLPE Insulated steel wire armoured Cable The

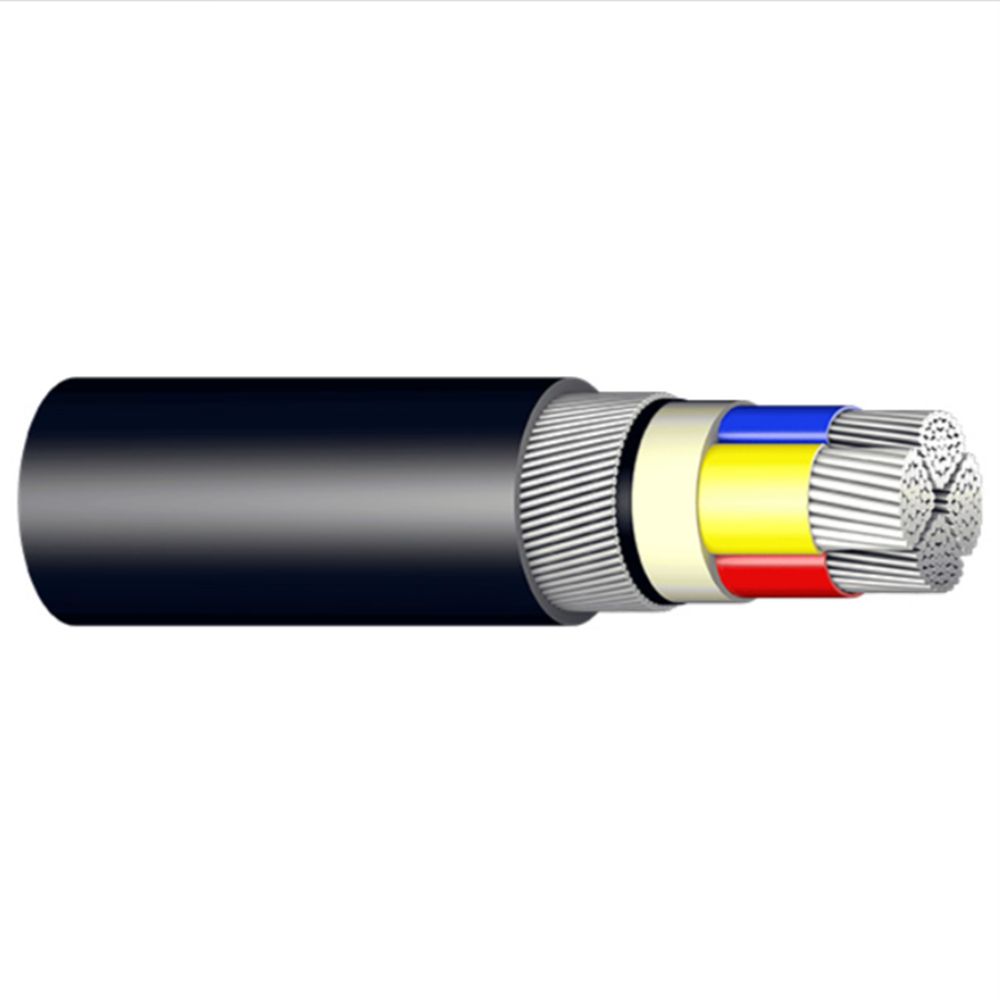

0.6/1kV Aluminum Conductor XLPE Insulated steel wire armoured Cable
The 0.6/1kV aluminum conductor XLPE insulated steel wire armoured (SWA) power cable is engineered for low-voltage power distribution in installations requiring high tensile strength and superior mechanical protection. With a lightweight aluminum conductor, heat-resistant XLPE insulation, and robust steel wire armour, this cable is ideal for underground and outdoor applications in demanding environments.
Construction:
Conductor: Stranded aluminum conductor (Class 2) for cost-effective and lightweight conductivity
Insulation: Cross-linked polyethylene (XLPE), rated at 90°C continuous operating temperature with excellent dielectric performance
Inner sheath: PVC bedding to protect the insulation and support the armour layer
Armour: Galvanized steel wire armour (SWA) providing high tensile strength, suitable for direct burial and vertical installations
Outer sheath: UV-resistant PVC or PE for protection against moisture, chemicals, and sunlight
Key Characteristics:
The product is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1 kV.
Rated voltages U0/U(Um): 0.6/1 (1.2)kV.
Note：
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um: Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
The ambient temperature for installation: ≥0℃.
Maximum conductor temperature in normal operation:≤90℃.
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable
Applications:
Designed for Africa and Latin America, this cable meets the need for durable, theft-resistant, and cost-efficient armoured power cables in regions with challenging terrain and limited maintenance resources. The SWA structure provides excellent tensile strength for long-distance runs, while the aluminum conductor reduces overall project cost—making it ideal for electrification, mining, and energy infrastructure development.
This aluminum XLPE SWA armoured cable is widely used in:
l Underground power transmission and distribution networks
l Mining, oil & gas, and industrial facilities
l Power supply for buildings, substations, and infrastructure projects
l Renewable energy plants and utility connections
Product type
|
General type |
VDE Type |
description |
|
CU/XLPE/PVC (AL/XLPE/PVC) |
N2XY (NA2XY) |
Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable |
|
CU/PVC/PE (AL/ XLPE /PE) |
N2X2Y(NA2X2Y) |
Cu conductor（Al conductor）XLPE insulated PE sheathed power cable |
|
CU/XLPE/STA/PVC (AL/XLPE/STA/PVC) |
N2XBY(NA2XBY) |
Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable |
|
CU/XLPE/STA/PE (AL/XLPE/STA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable |
|
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) |
N2XBY(NA2XBY) |
Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PVC sheathed power cable |
|
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PE sheathed power cable |
|
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable |
|
CU/XLPE/SWA/PE (AL/PVC/SWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable |
|
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PVC sheathed power cable |
|
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PE sheathed power cable |
Product Parameters
|
Specification mm2 |
Outer diameter of conductor mm |
Nominal sheath thickness mm |
Approx.outer diameter of cable mm |
Approx. Weight of cable kg/km |
|
|
CU |
AL |
||||
|
1X2.5 RE |
1.78 |
1.4 |
6 |
57.5 |
42.1 |
|
1X4 RE |
2.24 |
1.4 |
6.5 |
73.7 |
49 |
|
1X6 RE |
2.76 |
1.4 |
7 |
95.8 |
58.7 |
|
1X10 CC |
3.8 |
1.4 |
8 |
140.1 |
78.2 |
|
1X16 CC |
4.8 |
1.4 |
9 |
201.8 |
102.8 |
|
1X25 CC |
6 |
1.4 |
10.6 |
298.9 |
144.2 |
|
1x35 CC |
7 |
1.4 |
11.6 |
396.7 |
180.2 |
|
1X50 CC |
8.4 |
1.4 |
13.1 |
543.9 |
234.6 |
|
1X70 CC |
10 |
1.4 |
15 |
744.7 |
311.6 |
|
1X95 CC |
11.5 |
1.5 |
16.6 |
985.6 |
397.8 |
|
1X120 CC |
13 |
1.5 |
18.4 |
1233 |
490.6 |
|
1X150 CC |
14.5 |
1.6 |
20.5 |
1533.8 |
605.8 |
|
1X185 CC |
16.2 |
1.6 |
22.7 |
1884.9 |
740.3 |
|
1X240 CC |
18.4 |
1.7 |
25.3 |
2418 |
933.1 |
|
1X300 CC |
20.5 |
1.8 |
27.7 |
2996.5 |
1140.4 |
|
1X400 CC |
23.5 |
1.9 |
31.4 |
3962.3 |
1487.5 |
|
1X500 CC |
26.5 |
2 |
35 |
4933 |
1839.5 |
|
1X630 CC |
30 |
2.2 |
39.1 |
6188.8 |
2291 |
|
2X1.5 RE |
1.38 |
1.8 |
9.8 |
106.7 |
88 |
|
2X2.5 RE |
1.78 |
1.8 |
10.6 |
133 |
101.9 |
|
2X4 RE |
2.24 |
1.8 |
11.5 |
174.8 |
125.1 |
|
2X6 RE |
2.76 |
1.8 |
12.5 |
226.4 |
151.8 |
|
2X10 CC |
3.8 |
1.8 |
14.6 |
348.1 |
223.7 |
|
2X16 CC |
4.8 |
1.8 |
16.6 |
476.5 |
277.5 |
|
2X25 CC |
6 |
1.8 |
19.8 |
678.4 |
367.5 |
|
2X35 CC |
7 |
1.8 |
21.8 |
879.5 |
444.2 |
|
2X50 SM |
8 |
1.8 |
19.2 |
1103 |
481.2 |
|
2X70 SM |
9.5 |
1.8 |
21.9 |
1501.9 |
631.4 |
|
2X95 SM |
11 |
2 |
24.7 |
1993.9 |
812.4 |
|
2X120 SM |
12.4 |
2.1 |
27.3 |
2493.9 |
1001.6 |
|
2X150 SM |
13.8 |
2.2 |
30.6 |
3106.1 |
1240.7 |
|
2X185 SM |
15.4 |
2.3 |
33.8 |
3816.7 |
1516.1 |
|
2X240 SM |
17.5 |
2.5 |
37.6 |
4899.7 |
1915.1 |
|
2X300 SM |
19.6 |
2.7 |
41.7 |
6079.6 |
2348.9 |
|
3X1.5 RE |
1.38 |
1.8 |
10.2 |
132 |
104 |
|
3X2.5 RE |
1.78 |
1.8 |
11.1 |
168.7 |
122 |
|
3X4 RE |
2.24 |
1.8 |
12.1 |
220.4 |
145.8 |
|
3X6 RE |
2.76 |
1.8 |
13.2 |
296.6 |
184.7 |
|
3X10 CC |
3.8 |
1.8 |
15.4 |
439.4 |
252.9 |
|
3X16 CC |
4.8 |
1.8 |
17.6 |
645.9 |
347.4 |
|
3X25 CC |
6 |
1.8 |
21 |
937.2 |
470.9 |
|
3X35 CC |
7 |
1.8 |
23.2 |
1231.6 |
578.7 |
|
3X50 SM |
8 |
1.8 |
22.1 |
1611.4 |
678.8 |
|
3X70 SM |
9.5 |
1.9 |
25.7 |
2213.1 |
907.4 |
|
3X95 SM |
11 |
2 |
28.7 |
2938.7 |
1166.6 |
|
3X120 SM |
12.4 |
2.1 |
32.5 |
3687 |
1448.5 |
|
3X150 SM |
13.8 |
2.3 |
36.8 |
4598.4 |
1800.4 |
|
3X185 SM |
15.4 |
2.4 |
40.9 |
5654.8 |
2203.8 |
|
3X240 SM |
17.5 |
2.6 |
45.7 |
7268 |
2791.1 |
|
3X300 SM |
19.6 |
2.8 |
50.5 |
9019.7 |
3423.5 |
|
4X1.5 RE |
1.38 |
1.8 |
10.9 |
157.8 |
120.5 |
|
4X2.5 RE |
1.78 |
1.8 |
11.9 |
205.1 |
142.9 |
|
4X4 RE |
2.24 |
1.8 |
13 |
272.3 |
172.8 |
|
4X6 RE |
2.76 |
1.8 |
14.2 |
371 |
221.8 |
|
4X10 CC |
3.8 |
1.8 |
16.8 |
543.9 |
295.2 |
|
4X16 CC |
4.8 |
1.8 |
19.2 |
787.2 |
389.2 |
|
4X25 CC |
6 |
1.8 |
23 |
1188.9 |
567.1 |
|
4X35 CC |
7 |
1.8 |
25.4 |
1577.4 |
706.9 |
|
4X50 SM |
8 |
1.9 |
26.1 |
2134.8 |
891.2 |
|
4X70 SM |
9.5 |
2 |
30.1 |
2931.8 |
1190.8 |
|
4X95 SM |
11 |
2.1 |
33.5 |
3895.1 |
1532.3 |
|
4X120 SM |
12.4 |
2.3 |
36.6 |
4874.6 |
1890 |
|
4X150 SM |
13.8 |
2.4 |
40.9 |
6078.8 |
2348.1 |
|
4X185 SM |
15.4 |
2.6 |
46.5 |
7492.1 |
2890.8 |
|
4X240 SM |
17.5 |
2.8 |
51.1 |
9619.9 |
3650.7 |
|
4X300 SM |
19.6 |
3 |
56.3 |
11943.2 |
4481.7 |
|
3X4+1X2.5 RE |
2.24/1.78 |
1.8 |
12.7 |
255.5 |
165.3 |
|
3X6+1X4 RE |
2.76/2.24 |
1.8 |
13.9 |
349.4 |
212.6 |
|
3X10+1X6 CC |
3.8/2.76 |
1.8 |
16.1 |
505.2 |
281.4 |
|
3X16+1X10 CC |
4.8/3.8 |
1.8 |
18.6 |
730.9 |
370.2 |
|
3X25+1X16 CC |
6.0/4.8 |
1.8 |
22.1 |
1093.4 |
527.5 |
|
3X35+1X16 CC |
7.0/4.8 |
1.8 |
23.9 |
1384.8 |
632.4 |
|
3X50+1X25 SM |
8.0/6.0 |
1.8 |
24.9 |
1901.4 |
813.3 |
|
3X70+1X35 SM |
9.5/7.0 |
1.9 |
28.7 |
2599.1 |
1075.7 |
|
3X95+1X50 SM |
11.0/8.4 |
2.1 |
31.9 |
3470.6 |
1387.6 |
|
3X120+1X70 SM |
12.4/10.0 |
2.2 |
34.9 |
4401.4 |
1727.7 |
|
3X150+1X70 SM |
13.8/10.0 |
2.3 |
38.9 |
5309 |
2075.6 |
|
3X185+1X95 SM |
15.4/11.5 |
2.5 |
44.2 |
6614.5 |
2572.9 |
|
3X240+1X120 SM |
17.5 / 13.0 |
2.7 |
48.5 |
8456.4 |
3233.4 |
|
3X300+1X150 SM |
19.6/14.5 |
2.9 |
53.4 |
10499 |
3970.2 |
|
5X1.5 RE |
1.38 |
1.8 |
11.7 |
184.3 |
137.7 |
|
5X2.5 RE |
1.78 |
1.8 |
12.8 |
242.3 |
164.6 |
|
5X4 RE |
2.24 |
1.8 |
14.1 |
324.9 |
200.6 |
|
5X6 RE |
2.76 |
1.8 |
15.4 |
446.3 |
259.8 |
|
5X10 CC |
3.8 |
1.8 |
18.2 |
664.2 |
353.3 |
|
5X16 CC |
4.8 |
1.8 |
20.9 |
965.5 |
468.1 |
|
5X25 CC |
6 |
1.8 |
25.3 |
1456.5 |
679.2 |
|
5X35 CC |
7 |
1.8 |
28 |
1939.4 |
851.3 |
|
5X50 CC |
8.4 |
2 |
32.1 |
2649.3 |
1094.9 |
|
5X70 CC |
10 |
2.1 |
37.1 |
3645.3 |
1469 |
|
5X95 CC |
11.5 |
2.3 |
41.6 |
4846.2 |
1892.7 |
|
5X120 CC |
13 |
2.4 |
46.4 |
6074.4 |
2343.6 |
|
5X150 CC |
14.5 |
2.6 |
51.9 |
7589.3 |
2925.8 |
|
5X185 CC |
16.2 |
2.8 |
56 |
9342.3 |
3590.7 |
|
5X240 CC |
18.4 |
3 |
64.9 |
12016.7 |
4555.2 |
|
5X300 CC |
20.5 |
3.2 |
71.5 |
14918 |
5591.1 |
|
4X4+1X2.5 RE |
2.24/1.78 |
1.8 |
13.8 |
308.4 |
193.4 |
|
4X6+1X4 RE |
2.76/2.24 |
1.8 |
15.2 |
425.1 |
251 |
|
4X10+1X6 CC |
3.8/2.76 |
1.8 |
17.7 |
621.5 |
335.5 |
|
4X16+1X10 CC |
4.8/3.8 |
1.8 |
20.4 |
905.3 |
445.1 |
|
4X25+1X16 CC |
6.0/4.8 |
1.8 |
24.4 |
1361.8 |
640.5 |
|
4X35+1X16 CC |
7.0/4.8 |
1.8 |
26.6 |
1748.1 |
778.1 |
|
4X50+1X25 SM |
8.0/6.0 |
1.9 |
25.4 |
2374.9 |
975.8 |
|
4X70+1X35 SM |
9.5/7.0 |
2.1 |
29.1 |
3261.8 |
1303.2 |
|
4X95+1X50 SM |
11.0/8.1 |
2.2 |
32.7 |
4369.4 |
1695.7 |
|
4X120+1X70 SM |
12.4/9.8 |
2.4 |
36.7 |
5548.3 |
2128.5 |
|
4X150+1X70 SM |
13.8/9.8 |
2.5 |
40.4 |
6744.5 |
2578.5 |
|
4X185+1X95 SM |
15.4/11.4 |
2.7 |
45 |
8376.5 |
3184.6 |
|
4X240+1X120 SM |
17.5/12.9 |
2.9 |
50.5 |
10751.4 |
4036.1 |
|
4X300+1X150 SM |
19.6/14.5 |
3.1 |
55.9 |
13365.7 |
4971.4 |
|
3X4+2X2.5 RE |
2.24/1.78 |
1.8 |
13.5 |
291.9 |
186.2 |
|
3X6+2X4 RE |
2.76/2.24 |
1.8 |
14.9 |
403.8 |
242.1 |
|
3X10+2X6 CC |
3.8/2.76 |
1.8 |
17.1 |
578.9 |
317.7 |
|
3X16+2X10 CC |
4.8/3.8 |
1.8 |
19.9 |
845 |
422.2 |
|
3X25+2X16 CC |
6.0/4.8 |
1.8 |
23.5 |
1267.1 |
601.8 |
|
3X35+2X16 CC |
7.0/4.8 |
1.8 |
25.2 |
1556.9 |
705 |
|
3X50+2X25 SM |
8.0/6.0 |
1.9 |
25.3 |
2151.8 |
908.2 |
|
3X70+2X35 SM |
9.5/7.0 |
2 |
29 |
2942.3 |
1201.3 |
|
3X95+2X50 SM |
11.0/8.1 |
2.2 |
32.6 |
3960.2 |
1566.2 |
|
3X120+2X70 SM |
12.4/9.8 |
2.3 |
36.6 |
5093.1 |
1984.1 |
|
3X150+2X70 SM |
13.8/9.8 |
2.4 |
40.2 |
5996.7 |
2328.1 |
|
3X185+2X95 SM |
15.4/11.4 |
2.6 |
44.8 |
7527.1 |
2894.7 |
|
3X240+2X120 SM |
17.5/12.9 |
2.8 |
50.3 |
9621.2 |
3652 |
|
3X300+2X150 SM |
19.6/14.5 |
3 |
55.7 |
11961.3 |
4499.7 |
Range of production:
Number of cores: 1, 2, 3, 4, 5, 2+E, 3+E, 4+E
Nominal cross-section (mm2): 0.5~800
Admin
International logistics and technical documentation can be a nightmare for many businesses. At...
Jan 28 2026
Read More
Admin
One of the biggest fears in global sourcing is receiving a product that doesn’t match th...
Jan 28 2026
Read More
Admin
In the world of international procurement, "where" your partner is located is just as important...
Jan 28 2026
Read More
