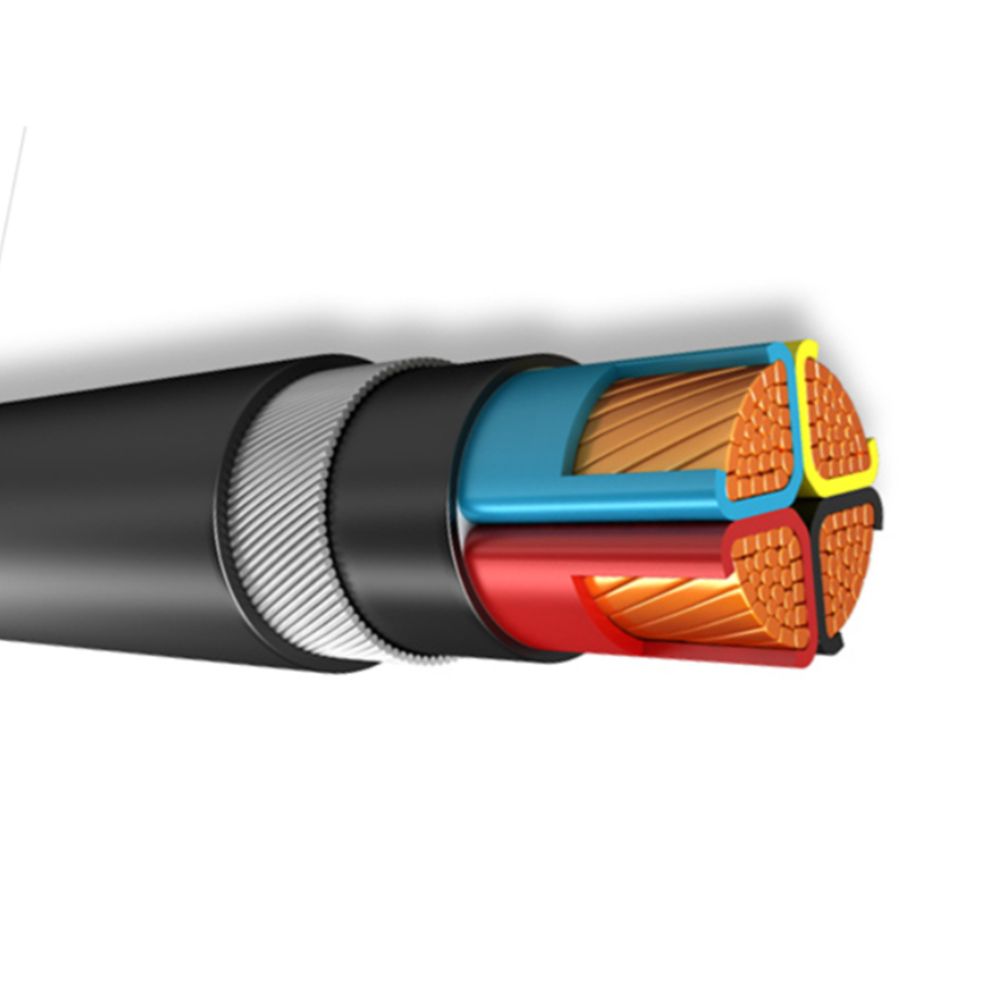

0.6/1kV XLPE Insulated Steel Wire Armoured Cable / SWA power cable
3890.6/1kV XLPE Insulated Steel Wire Armoured Cable / SWA power cable Discover the power of reliable energy distribution with our premium 0.6/1kV XLPE Insulated Steel Wire Armoured
0.6/1kV XLPE Insulated Steel Wire Armoured Cable / SWA power cable
Discover the power of reliable energy distribution with our premium 0.6/1kV XLPE Insulated Steel Wire Armoured Cable (SWA) . Engineered for maximum durability and electrical efficiency, this low-voltage power cable is the industry standard for mains electrical supply. Whether for underground wiring or outdoor industrial applications, this cable provides a robust solution designed to withstand harsh environmental conditions.
Construction:
Conductor: Plain annealed copper or aluminum (AAC/AAAC) stranded conductor for optimal conductivity.
Insulation: Cross-Linked Polyethylene (XLPE) insulation, offering excellent resistance to high temperatures, chemical corrosion, and electrical stress compared to standard PVC.
Inner Sheath: A tough PVC inner sheath extruded over the insulated cores.
Armouring: Concentric application of Galvanized Steel Wire (SWA), providing superior mechanical protection against impact, crushing, and rodent damage.
Outer Sheath: Durable PVC sheath (often black) resistant to UV radiation, moisture, and abrasion, ensuring long service life in outdoor and underground direct burial installations.
Key Characteristics:
It combines the high thermal performance of XLPE insulation (allowing for higher current ratings) with the rugged physical protection of Steel Wire Armour. This makes it the most trusted cable type for direct burial and installations where mechanical stress is a concern, ensuring a stable power supply for homes, businesses, and industries across developing markets.
Rated voltages U0/U(Um): 0.6/1 (1.2)kV.
Note：
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um: Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
The ambient temperature for installation: ≥0℃.
Maximum conductor temperature in normal operation:≤90℃.
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable
Applications:
This versatile power cable is specifically designed for the demanding energy sectors of Africa and Latin America.
Power Networks: Ideal for underground LV mains distribution in urban and rural electrification projects.
Infrastructure: Used in civil engineering projects, road lighting, and traffic signal systems.
Industrial: Perfect for fixed installations in factories, processing plants, and heavy industries requiring mechanical protection.
Construction: Suitable for commercial building supply, substations, and switchboard wiring.
Product type
|
General type |
VDE Type |
description |
|
CU/XLPE/PVC (AL/XLPE/PVC) |
N2XY (NA2XY) |
Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable |
|
CU/PVC/PE (AL/ XLPE /PE) |
N2X2Y(NA2X2Y) |
Cu conductor（Al conductor）XLPE insulated PE sheathed power cable |
|
CU/XLPE/STA/PVC (AL/XLPE/STA/PVC) |
N2XBY(NA2XBY) |
Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable |
|
CU/XLPE/STA/PE (AL/XLPE/STA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable |
|
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) |
N2XBY(NA2XBY) |
Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PVC sheathed power cable |
|
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PE sheathed power cable |
|
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable |
|
CU/XLPE/SWA/PE (AL/PVC/SWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable |
|
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PVC sheathed power cable |
|
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PE sheathed power cable |
Product Parameters
|
Specification mm2 |
Outer diameter of conductor mm |
Nominal sheath thickness mm |
Approx.outer diameter of cable mm |
Approx. Weight of cable kg/km |
|
|
CU |
AL |
||||
|
1X2.5 RE |
1.78 |
1.4 |
6 |
57.5 |
42.1 |
|
1X4 RE |
2.24 |
1.4 |
6.5 |
73.7 |
49 |
|
1X6 RE |
2.76 |
1.4 |
7 |
95.8 |
58.7 |
|
1X10 CC |
3.8 |
1.4 |
8 |
140.1 |
78.2 |
|
1X16 CC |
4.8 |
1.4 |
9 |
201.8 |
102.8 |
|
1X25 CC |
6 |
1.4 |
10.6 |
298.9 |
144.2 |
|
1x35 CC |
7 |
1.4 |
11.6 |
396.7 |
180.2 |
|
1X50 CC |
8.4 |
1.4 |
13.1 |
543.9 |
234.6 |
|
1X70 CC |
10 |
1.4 |
15 |
744.7 |
311.6 |
|
1X95 CC |
11.5 |
1.5 |
16.6 |
985.6 |
397.8 |
|
1X120 CC |
13 |
1.5 |
18.4 |
1233 |
490.6 |
|
1X150 CC |
14.5 |
1.6 |
20.5 |
1533.8 |
605.8 |
|
1X185 CC |
16.2 |
1.6 |
22.7 |
1884.9 |
740.3 |
|
1X240 CC |
18.4 |
1.7 |
25.3 |
2418 |
933.1 |
|
1X300 CC |
20.5 |
1.8 |
27.7 |
2996.5 |
1140.4 |
|
1X400 CC |
23.5 |
1.9 |
31.4 |
3962.3 |
1487.5 |
|
1X500 CC |
26.5 |
2 |
35 |
4933 |
1839.5 |
|
1X630 CC |
30 |
2.2 |
39.1 |
6188.8 |
2291 |
|
2X1.5 RE |
1.38 |
1.8 |
9.8 |
106.7 |
88 |
|
2X2.5 RE |
1.78 |
1.8 |
10.6 |
133 |
101.9 |
|
2X4 RE |
2.24 |
1.8 |
11.5 |
174.8 |
125.1 |
|
2X6 RE |
2.76 |
1.8 |
12.5 |
226.4 |
151.8 |
|
2X10 CC |
3.8 |
1.8 |
14.6 |
348.1 |
223.7 |
|
2X16 CC |
4.8 |
1.8 |
16.6 |
476.5 |
277.5 |
|
2X25 CC |
6 |
1.8 |
19.8 |
678.4 |
367.5 |
|
2X35 CC |
7 |
1.8 |
21.8 |
879.5 |
444.2 |
|
2X50 SM |
8 |
1.8 |
19.2 |
1103 |
481.2 |
|
2X70 SM |
9.5 |
1.8 |
21.9 |
1501.9 |
631.4 |
|
2X95 SM |
11 |
2 |
24.7 |
1993.9 |
812.4 |
|
2X120 SM |
12.4 |
2.1 |
27.3 |
2493.9 |
1001.6 |
|
2X150 SM |
13.8 |
2.2 |
30.6 |
3106.1 |
1240.7 |
|
2X185 SM |
15.4 |
2.3 |
33.8 |
3816.7 |
1516.1 |
|
2X240 SM |
17.5 |
2.5 |
37.6 |
4899.7 |
1915.1 |
|
2X300 SM |
19.6 |
2.7 |
41.7 |
6079.6 |
2348.9 |
|
3X1.5 RE |
1.38 |
1.8 |
10.2 |
132 |
104 |
|
3X2.5 RE |
1.78 |
1.8 |
11.1 |
168.7 |
122 |
|
3X4 RE |
2.24 |
1.8 |
12.1 |
220.4 |
145.8 |
|
3X6 RE |
2.76 |
1.8 |
13.2 |
296.6 |
184.7 |
|
3X10 CC |
3.8 |
1.8 |
15.4 |
439.4 |
252.9 |
|
3X16 CC |
4.8 |
1.8 |
17.6 |
645.9 |
347.4 |
|
3X25 CC |
6 |
1.8 |
21 |
937.2 |
470.9 |
|
3X35 CC |
7 |
1.8 |
23.2 |
1231.6 |
578.7 |
|
3X50 SM |
8 |
1.8 |
22.1 |
1611.4 |
678.8 |
|
3X70 SM |
9.5 |
1.9 |
25.7 |
2213.1 |
907.4 |
|
3X95 SM |
11 |
2 |
28.7 |
2938.7 |
1166.6 |
|
3X120 SM |
12.4 |
2.1 |
32.5 |
3687 |
1448.5 |
|
3X150 SM |
13.8 |
2.3 |
36.8 |
4598.4 |
1800.4 |
|
3X185 SM |
15.4 |
2.4 |
40.9 |
5654.8 |
2203.8 |
|
3X240 SM |
17.5 |
2.6 |
45.7 |
7268 |
2791.1 |
|
3X300 SM |
19.6 |
2.8 |
50.5 |
9019.7 |
3423.5 |
|
4X1.5 RE |
1.38 |
1.8 |
10.9 |
157.8 |
120.5 |
|
4X2.5 RE |
1.78 |
1.8 |
11.9 |
205.1 |
142.9 |
|
4X4 RE |
2.24 |
1.8 |
13 |
272.3 |
172.8 |
|
4X6 RE |
2.76 |
1.8 |
14.2 |
371 |
221.8 |
|
4X10 CC |
3.8 |
1.8 |
16.8 |
543.9 |
295.2 |
|
4X16 CC |
4.8 |
1.8 |
19.2 |
787.2 |
389.2 |
|
4X25 CC |
6 |
1.8 |
23 |
1188.9 |
567.1 |
|
4X35 CC |
7 |
1.8 |
25.4 |
1577.4 |
706.9 |
|
4X50 SM |
8 |
1.9 |
26.1 |
2134.8 |
891.2 |
|
4X70 SM |
9.5 |
2 |
30.1 |
2931.8 |
1190.8 |
|
4X95 SM |
11 |
2.1 |
33.5 |
3895.1 |
1532.3 |
|
4X120 SM |
12.4 |
2.3 |
36.6 |
4874.6 |
1890 |
|
4X150 SM |
13.8 |
2.4 |
40.9 |
6078.8 |
2348.1 |
|
4X185 SM |
15.4 |
2.6 |
46.5 |
7492.1 |
2890.8 |
|
4X240 SM |
17.5 |
2.8 |
51.1 |
9619.9 |
3650.7 |
|
4X300 SM |
19.6 |
3 |
56.3 |
11943.2 |
4481.7 |
|
3X4+1X2.5 RE |
2.24/1.78 |
1.8 |
12.7 |
255.5 |
165.3 |
|
3X6+1X4 RE |
2.76/2.24 |
1.8 |
13.9 |
349.4 |
212.6 |
|
3X10+1X6 CC |
3.8/2.76 |
1.8 |
16.1 |
505.2 |
281.4 |
|
3X16+1X10 CC |
4.8/3.8 |
1.8 |
18.6 |
730.9 |
370.2 |
|
3X25+1X16 CC |
6.0/4.8 |
1.8 |
22.1 |
1093.4 |
527.5 |
|
3X35+1X16 CC |
7.0/4.8 |
1.8 |
23.9 |
1384.8 |
632.4 |
|
3X50+1X25 SM |
8.0/6.0 |
1.8 |
24.9 |
1901.4 |
813.3 |
|
3X70+1X35 SM |
9.5/7.0 |
1.9 |
28.7 |
2599.1 |
1075.7 |
|
3X95+1X50 SM |
11.0/8.4 |
2.1 |
31.9 |
3470.6 |
1387.6 |
|
3X120+1X70 SM |
12.4/10.0 |
2.2 |
34.9 |
4401.4 |
1727.7 |
|
3X150+1X70 SM |
13.8/10.0 |
2.3 |
38.9 |
5309 |
2075.6 |
|
3X185+1X95 SM |
15.4/11.5 |
2.5 |
44.2 |
6614.5 |
2572.9 |
|
3X240+1X120 SM |
17.5 / 13.0 |
2.7 |
48.5 |
8456.4 |
3233.4 |
|
3X300+1X150 SM |
19.6/14.5 |
2.9 |
53.4 |
10499 |
3970.2 |
|
5X1.5 RE |
1.38 |
1.8 |
11.7 |
184.3 |
137.7 |
|
5X2.5 RE |
1.78 |
1.8 |
12.8 |
242.3 |
164.6 |
|
5X4 RE |
2.24 |
1.8 |
14.1 |
324.9 |
200.6 |
|
5X6 RE |
2.76 |
1.8 |
15.4 |
446.3 |
259.8 |
|
5X10 CC |
3.8 |
1.8 |
18.2 |
664.2 |
353.3 |
|
5X16 CC |
4.8 |
1.8 |
20.9 |
965.5 |
468.1 |
|
5X25 CC |
6 |
1.8 |
25.3 |
1456.5 |
679.2 |
|
5X35 CC |
7 |
1.8 |
28 |
1939.4 |
851.3 |
|
5X50 CC |
8.4 |
2 |
32.1 |
2649.3 |
1094.9 |
|
5X70 CC |
10 |
2.1 |
37.1 |
3645.3 |
1469 |
|
5X95 CC |
11.5 |
2.3 |
41.6 |
4846.2 |
1892.7 |
|
5X120 CC |
13 |
2.4 |
46.4 |
6074.4 |
2343.6 |
|
5X150 CC |
14.5 |
2.6 |
51.9 |
7589.3 |
2925.8 |
|
5X185 CC |
16.2 |
2.8 |
56 |
9342.3 |
3590.7 |
|
5X240 CC |
18.4 |
3 |
64.9 |
12016.7 |
4555.2 |
|
5X300 CC |
20.5 |
3.2 |
71.5 |
14918 |
5591.1 |
|
4X4+1X2.5 RE |
2.24/1.78 |
1.8 |
13.8 |
308.4 |
193.4 |
|
4X6+1X4 RE |
2.76/2.24 |
1.8 |
15.2 |
425.1 |
251 |
|
4X10+1X6 CC |
3.8/2.76 |
1.8 |
17.7 |
621.5 |
335.5 |
|
4X16+1X10 CC |
4.8/3.8 |
1.8 |
20.4 |
905.3 |
445.1 |
|
4X25+1X16 CC |
6.0/4.8 |
1.8 |
24.4 |
1361.8 |
640.5 |
|
4X35+1X16 CC |
7.0/4.8 |
1.8 |
26.6 |
1748.1 |
778.1 |
|
4X50+1X25 SM |
8.0/6.0 |
1.9 |
25.4 |
2374.9 |
975.8 |
|
4X70+1X35 SM |
9.5/7.0 |
2.1 |
29.1 |
3261.8 |
1303.2 |
|
4X95+1X50 SM |
11.0/8.1 |
2.2 |
32.7 |
4369.4 |
1695.7 |
|
4X120+1X70 SM |
12.4/9.8 |
2.4 |
36.7 |
5548.3 |
2128.5 |
|
4X150+1X70 SM |
13.8/9.8 |
2.5 |
40.4 |
6744.5 |
2578.5 |
|
4X185+1X95 SM |
15.4/11.4 |
2.7 |
45 |
8376.5 |
3184.6 |
|
4X240+1X120 SM |
17.5/12.9 |
2.9 |
50.5 |
10751.4 |
4036.1 |
|
4X300+1X150 SM |
19.6/14.5 |
3.1 |
55.9 |
13365.7 |
4971.4 |
|
3X4+2X2.5 RE |
2.24/1.78 |
1.8 |
13.5 |
291.9 |
186.2 |
|
3X6+2X4 RE |
2.76/2.24 |
1.8 |
14.9 |
403.8 |
242.1 |
|
3X10+2X6 CC |
3.8/2.76 |
1.8 |
17.1 |
578.9 |
317.7 |
|
3X16+2X10 CC |
4.8/3.8 |
1.8 |
19.9 |
845 |
422.2 |
|
3X25+2X16 CC |
6.0/4.8 |
1.8 |
23.5 |
1267.1 |
601.8 |
|
3X35+2X16 CC |
7.0/4.8 |
1.8 |
25.2 |
1556.9 |
705 |
|
3X50+2X25 SM |
8.0/6.0 |
1.9 |
25.3 |
2151.8 |
908.2 |
|
3X70+2X35 SM |
9.5/7.0 |
2 |
29 |
2942.3 |
1201.3 |
|
3X95+2X50 SM |
11.0/8.1 |
2.2 |
32.6 |
3960.2 |
1566.2 |
|
3X120+2X70 SM |
12.4/9.8 |
2.3 |
36.6 |
5093.1 |
1984.1 |
|
3X150+2X70 SM |
13.8/9.8 |
2.4 |
40.2 |
5996.7 |
2328.1 |
|
3X185+2X95 SM |
15.4/11.4 |
2.6 |
44.8 |
7527.1 |
2894.7 |
|
3X240+2X120 SM |
17.5/12.9 |
2.8 |
50.3 |
9621.2 |
3652 |
|
3X300+2X150 SM |
19.6/14.5 |
3 |
55.7 |
11961.3 |
4499.7 |
Range of production:
Number of cores: 1, 2, 3, 4, 5, 2+E, 3+E, 4+E
Nominal cross-section (mm2): 0.5~800
Admin
International logistics and technical documentation can be a nightmare for many businesses. At...
Jan 28 2026
Read More
Admin
One of the biggest fears in global sourcing is receiving a product that doesn’t match th...
Jan 28 2026
Read More
Admin
In the world of international procurement, "where" your partner is located is just as important...
Jan 28 2026
Read More
