H01N2-E Extra Flexible Rubber Welding Cable

Product Review | Top Rated

H01N2-E Extra Flexible Rubber Welding Cable / high-performance arc welding cable Power your most demanding welding operations with our H01N2-E Extra Flexible Rubber Welding Cable. Designed in ac

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

H01N2-E Extra Flexible Rubber Welding Cable / high-performance arc welding cable

Power your most demanding welding operations with our H01N2-E Extra Flexible Rubber Welding Cable. Designed in accordance with the stringent EN 50525-2-81 standard , this single-core, high-class cable is the industry benchmark for connecting welding generators to electrode holders. Specifically engineered for applications requiring superior flexibility, it ensures reliable power transmission in the harshest industrial environments.

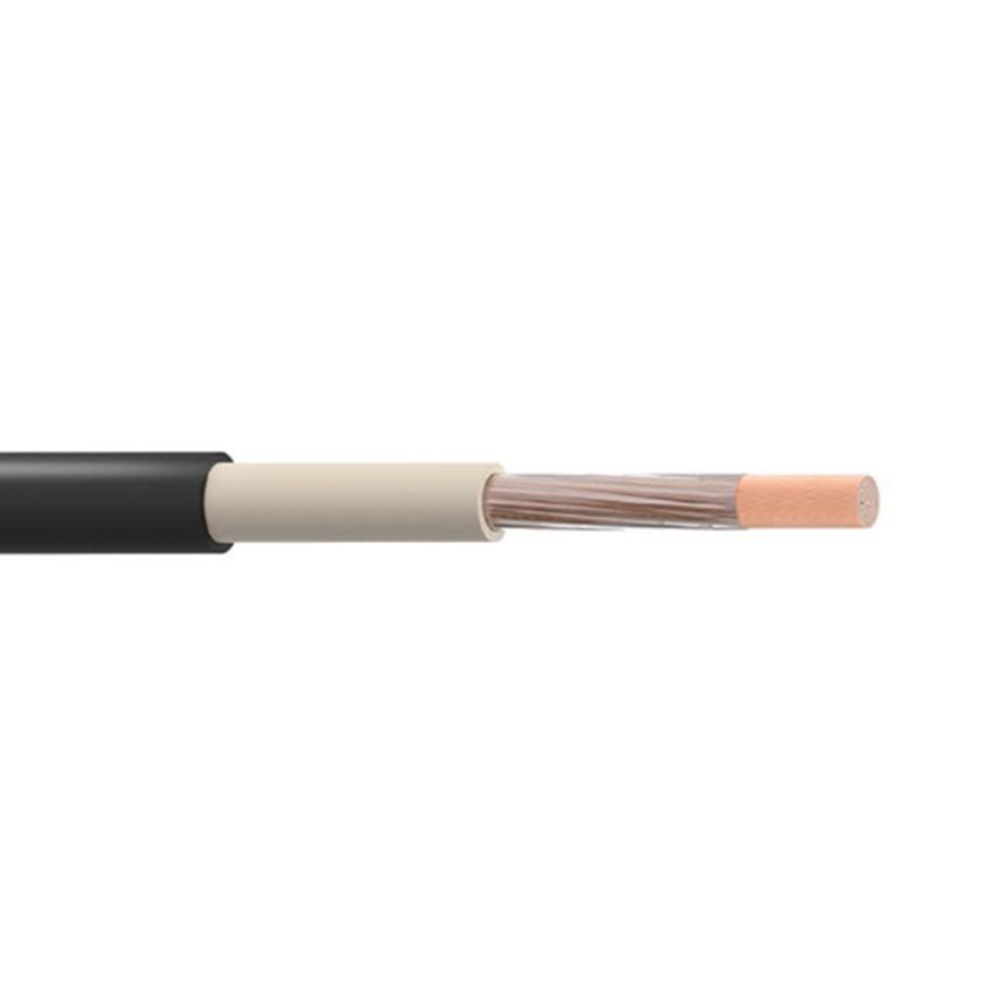

Construction
Conductor: Plain annealed flexible copper wire (Class 6, according to BS EN 60228)

Separator: PET (Polyester Tape)

Sheath: Rubber compound, Type EM5 according to BS EN 50363, the cover can consist of one or two layer.

Standards

IEC 60245、 GB/T5013.6 、BS EN 50525-2-81 、DIN、 VDE

Characteristics:

Voltage Rated: 100V.

Voltage Test (50Hz): 1000V.

Temperature Rating: Fixed: -40°C to +85°C, Flexed: -20°C to +85°C.

Minimum Bending Radius: Fixed: 4 x overall diameter; Flexed: 6 x overall diameter.

Applications

Whether you are working on a large-scale industrial project in Brazil, a mining operation in Chile, or a construction site in Nigeria, our extra flexible rubber welding cable delivers uncompromised performance and safety. Its resistance to tough environmental conditions ensures a longer lifespan and a secure, efficient weld every time. Contact us today for your bulk supply needs.

This cable is the trusted choice for professional welders and industries across Africa and Latin America. It is widely used in:

l Shipbuilding & Offshore Platforms: For assembly and repairs in marine environments .

l Automotive Manufacturing: Powering robotic welders and assembly lines .

l Construction & Mining: Providing a robust power supply for portable welding equipment on remote job sites .

l General Industry: Ideal for machine tools, metal fabrication workshops, and maintenance operations requiring a reliable and flexible connection

Specifications:

Nominal cross-sectional area mm2	Max. Diameter of wire mm	Nominal thickness of sheath mm	Average overall diameter mm		Maximum DC Resistance at 20℃Ω/km
Nominal cross-sectional area mm2	Max. Diameter of wire mm	Nominal thickness of sheath mm	Min.	Max.	Tinned copper	Untinned copper
10	0.21	2	7.7	9.7	1.95	1.91
16	0.21	2	8.8	11	1.24	1.21
25	0.21	2	10.1	12.7	0.795	0.78
35	0.21	2	11.4	14.2	0.565	0.554
50	0.21	2.2	13.2	16.5	0.393	0.386
70	0.21	2.4	15.3	19.2	0.277	0.272
95	0.21	2.6	17.1	21.4	0.21	0.206
120	0.51	2.8	19.2	24	0.164	0.161
150	0.51	3	21.1	26.4	0.132	0.129
185	0.51	3.2	23.1	28.9	0.108	0.106
