H01N2-D Flexible Rubber Welding Cable

H01N2-D  Flexible Rubber Welding Cable

The H01N2-D Flexible Rubber Welding Cable is a premium, heavy-duty power lead engineered for the extreme demands of the mining industry. Designed to power welding machines and high-amp equipment, this single-core cable combines exceptional flexibility with a rugged, weather-resistant rubber sheath. It is built to survive the harshest conditions, from underground tunnels to open-pit mines, ensuring reliable arc stability and power transmission in critical welding applications.

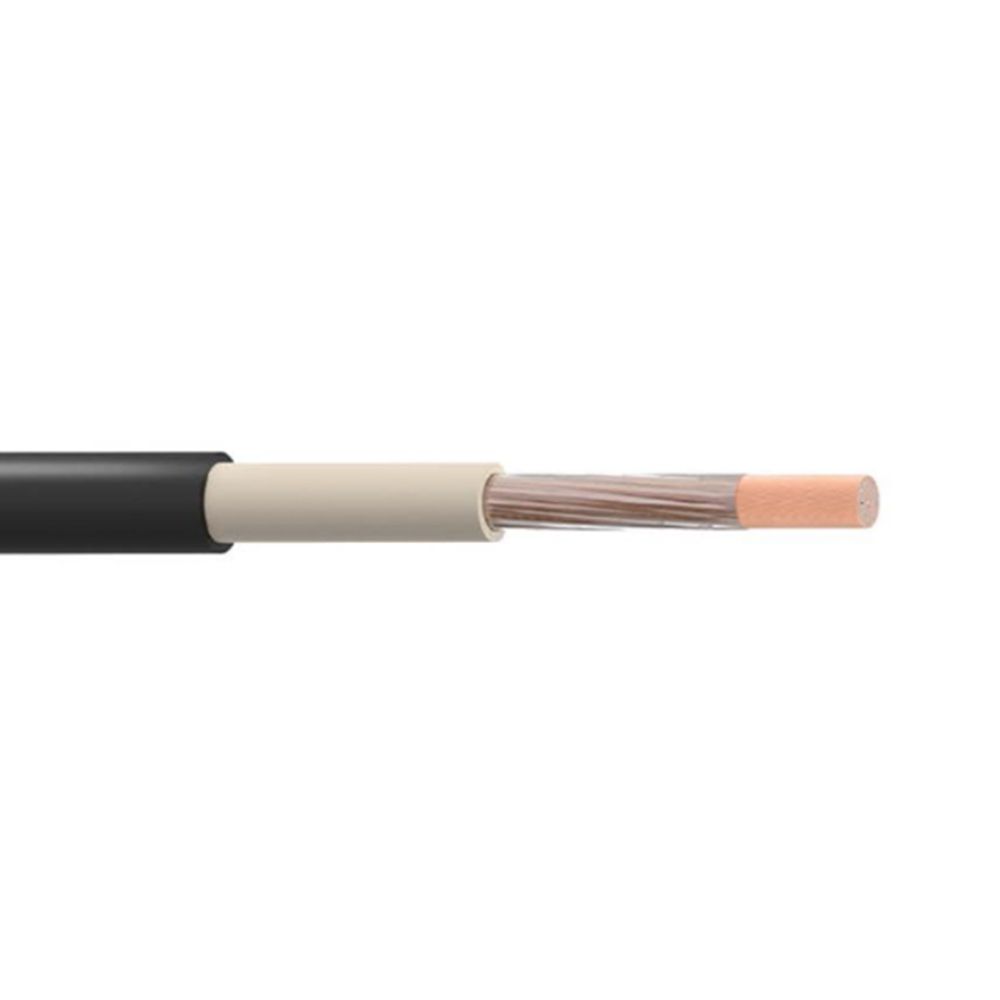

Construction
Conductor: Plain annealed flexible copper wire (Class 6, according to BS EN 60228)

Separator: PET (Polyester Tape)

Sheath: Rubber compound, Type EM5 according to BS EN 50363, the cover can consist of one or two layer.

Standards

IEC 60245、 GB/T5013.6 、BS EN 50525-2-81 、DIN、 VDE

Characteristics:

Voltage Rated: 100V.

Voltage Test (50Hz): 1000V.

Temperature Rating: Fixed: -40°C to +85°C, Flexed: -20°C to +85°C.

Minimum Bending Radius: Fixed: 4 x overall diameter; Flexed: 6 x overall diameter.

Applications

The H01N2-D welding cable is essential for maintenance, fabrication, and repair operations on mine sites, including:

Mobile Welders: Connecting welding machines on service trucks and maintenance vehicles.

Heavy Fabrication: Powering manual and automatic welding equipment for repairing excavator buckets, crushers, and conveyor systems.

Maintenance Shops: Ideal for workshops where cables are subject to frequent movement, sharp edges, and heavy foot/machinery traffic.

Scrap & Salvage: Suitable for demanding demo work and torch operations within mining salvage yards.

Target Market: Mining & Smelting Operations, Heavy Equipment Repair, Underground Mining Fabrication, and Industrial Contracting

Specifications:
