PV1-F PV Cable 4mm2 DC Solar Photovoltaic Wire And Cable

Product Review | Top Rated

PV1-F PV cable 4mm2 1/1.8KV DC solar photovoltaic wire and cable. Rating voltage: AC 600/1000V DC1000/1800V

Additional Information

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Inquire Now

Description:

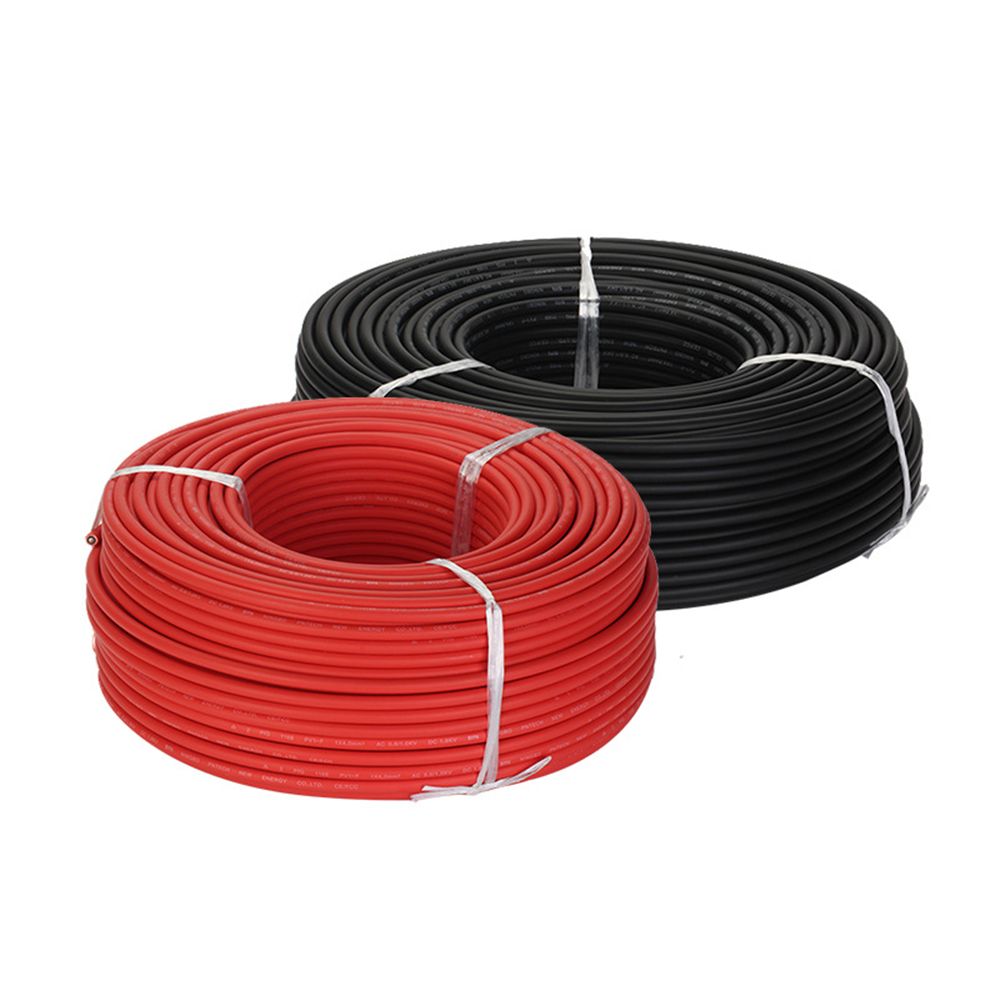

PV1-F PV cable 4mm² 1/1.8KV DC solar photovoltaic wire and cable.

Rating voltage: AC 600/1000V DC1000/1800V Temperature:-40°C-- 120°C

Test voltage: AC 6.5KV, DC 15KV, time duration 5 mins.

Conductor material: Tinned copper

Insulation material: XLPO / LSZH material

Jacket/Sheath: XLPO

Specification table

Cross section (mm²)	Conductor construction (n/mm)	Conductor stranded OD (mm)	Insulation Min.wall thickness (mm)	Sheath min.wall thickness (mm)	Cable OD (mm)	Conductor Max.resistance at 20℃ (Ω/km)	Current arraaing capacity at 60℃(A)
1.5	30/0.25	1.58	0.67	0.73	4.90	13.3	30
2.5	50/0.25	2.02	0.67	0.73	5.45	7.98	41
4	56/0.30	2.60	0.67	0.73	6.10	4.95	55
6	84/0.30	3.42	0.8	0.80	7.20	3.30	70
10	142/0.30	4.56	0.9	0.90	9.00	1.91	98
16	228/0.30	5.60	1.0	0.90	10.20	1.21	132
25	361/0.30	6.95	1.19	0.92	12.00	0.78	176
35	276/0.40	8.74	1.2	1.00	13.80	0.554	218

General characteristics:

Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire .

1.working ambient temperature: -40 ℃ to +90℃ (mobile or fixed), conductor working temperature 120℃

2. expected service life 25 years, during a short circuit (within 5s) the max. Temperature does not exceed 200℃

3. Bending radius of the cable shall be no less than 4 times of the cable OD.

4. The insulation and sheath are made of halogen-free cross-linked polyolefin material.

5. The solar pv cable meet the halogen-free flame retardant performance requirements of TUV 2Pgf1169/08:2007

6. TUV 2Pgf1169/08:2007 and China standard CEEIA B218-2012 approved.
