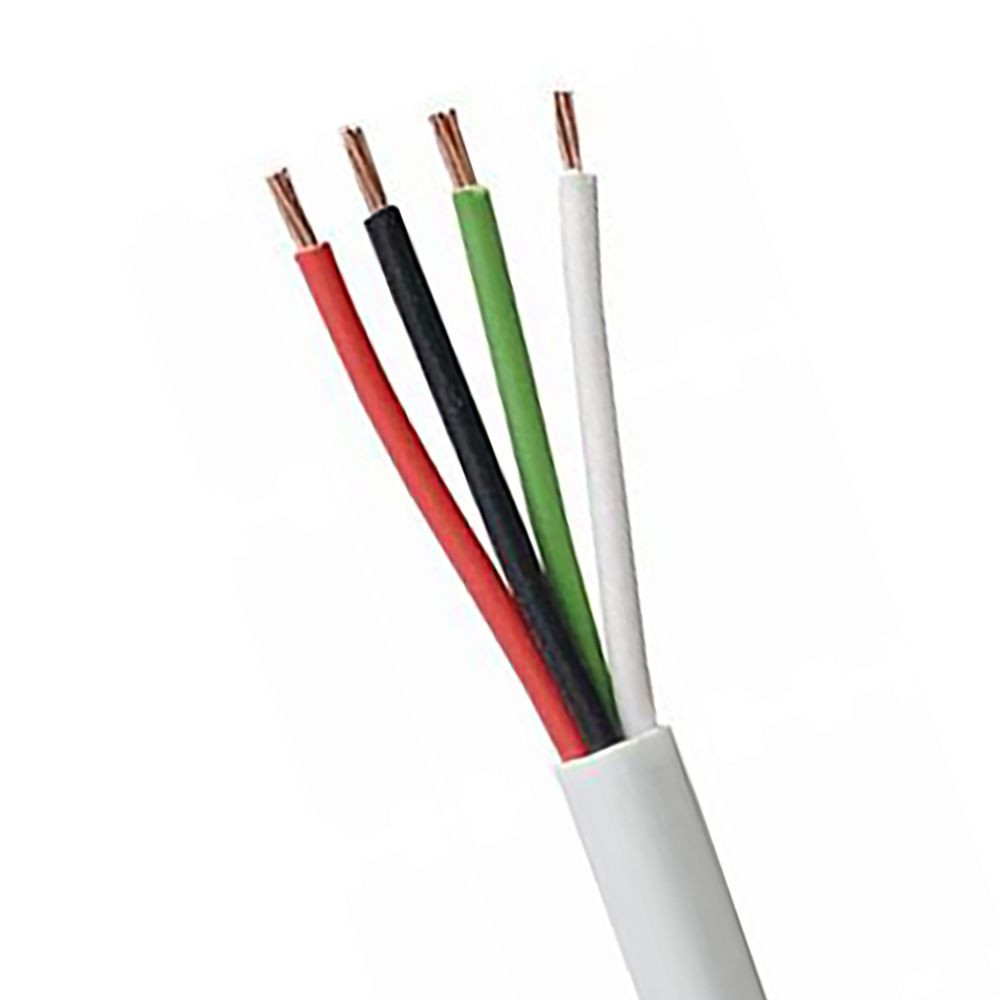

Control Cable - Industrial Grade PVC Insulated Multi-Core Wire for Automation Systems
Premium KVV/KVVP Control Cable - IEC & GB Standard Certified for Reliable Signal Transmission
Industrial Control Cable is the backbone of modern automation systems, providing reliable signal and power transmission for PLCs, sensors, actuators, and control panels. Our IEC and GB/T 9330 certified KVV series control cables deliver superior performance in industrial environments with options for shielded (KVVP) and armored (KVV22) constructions.
Product range & specifications:
|
KVV series- standard PVC control cable |
|
|
standards |
GB/T9330.1-2020, IEC 60502-1 |
|
Voltage rating |
300/500V or 450/750V |
|
Temperature range |
-15°C to +70°C |
|
Insulation |
High-grade PVC |
|
Sheath |
Gray PVC (standard), other colors available |
|
Conductor |
Plain copper, class 1 (solid) or class 2 (stranded) |
|
KVVP Series- shielded control cable, all KVV features PLUS: |
|
|
Shielding |
Copper braid or aluminum-polyester foil shield |
|
EMI Protection |
Excellent electromagnetic interference rejection |
|
applications |
Sensitive instrumentation, VFD/motor connections |
|
KVV22 Series-Armored control cable (All KVV features PLUS:) |
|
|
Armor |
Galvanized steel tape armor |
|
Mechanical protection |
Suitable for light burial and exposed installations |
|
Applications: |
Industrial floors, outdoor runs, rodent-prone areas |
Technical Specifications:
|
Rated voltage |
300/500v or 450/750v |
|
Test voltage |
2000V AC for 5 minutes (core to core and core-to-shield) |
|
Insulation resistance |
≥200 MΩ·km at 20°C |
|
Maximum operating temp. |
+70°C (PVC) |
|
Minimum installaion temp. |
-15°C (PVC remains flexible) |
|
Conductor material |
Plain copper, tinned copper available |
|
Stranding |
Class 1 (solid) or class 2 (stranded) per IEC 60228 |
|
Insulation thickness |
Per GB/T 9330/IEC 60502 requirements |
|
shielding |
≥85% coverage (KVVP series) |
|
armor |
Double-layer galvanized steel tape (KVV22 series) |
Available configurations
|
Core Count |
Conductor sizes (mm²) |
Standard colors |
|
2-5 cores |
0.5, 0.75. 1.0, 1.5 |
Black with numbers |
|
7-24 cores |
0.5, 0.75. 1.0, 1.5, 2.5 |
IEC color code or numbered |
|
27-48 cores |
0.5, 0.75. 1.0 |
Numbered conductors |
|
61+ cores |
0.5, 0.75 |
Numbered conductors |
Applications & Industrial Uses
Primary Industries Served:
Manufacturing & Automation - PLC systems, CNC machines, robotics
Building Management - HVAC controls, lighting systems, access control
Energy & Utilities - Substation controls, power plant instrumentation
Transportation - Railway signaling, airport systems, port automation
Water Treatment - Pump controls, SCADA systems, monitoring equipment
Specific Applications:
Control Panel Wiring - Internal and external panel connections
Sensor & Actuator Networks - Analog and digital signal transmission
Motor Control Circuits - Start/stop controls, speed regulation
Instrumentation Loops - 4-20mA, 0-10V signal transmission
Alarm & Security Systems - Fire alarms, intrusion detection wiring
Certifications & Compliance
Our control cables meet the highest international and national standards:
International Standards:
IEC 60502-1 - Power cables with extruded insulation
IEC 60228 - Conductors of insulated cables
IEC 60332-1 - Flame propagation testing (optional)
Chinese National Standards (GB):
GB/T 9330-2020 - Control cables (primary standard)
GB/T 19666-2019 - Flame retardant cables
GB/T 17650-1998 - Halogen content testing
GB/T 17651-1998 - Smoke density testing
Frequently Asked Questions
Q: Whats the difference between KVV and KVVP cable?
A: KVV is unshielded for general use; KVVP has copper shielding for EMI protection in sensitive applications.
Q: Can I use control cable for power applications?
A: Control cables are rated for 300/500V or 450/750V for control circuits, not for mains power distribution.
Q: Is KVV cable suitable for outdoor use?
A: Standard KVV is for indoor use. For outdoor applications, use KVV22 armored version or install in conduit.
Q: What does the GB/T 9330 standard cover?
A: Its the Chinese national standard specifying requirements for PVC insulated and sheathed control cables.
Q: Can I get flame-retardant versions?
A: Yes, we offer FR-PVC compounds that meet GB/T 19666 flame retardant requirements.
